Instancing Objects

Instancing Objects

In order to save drawcalls, the engine combines identical elements of an object into one renderpass. It is mainly used on complex objects, which have a lot of separate internal parts, like fences or tanks, where a lot of similar objects are used or animated.

Sample File

Sample File: instancing_fence.max

General Setup in 3d applications

* The elements of an object need to have the same vertex index, the same UVs, the same material.

  • elements can be translated, rotated and uniformally scaled

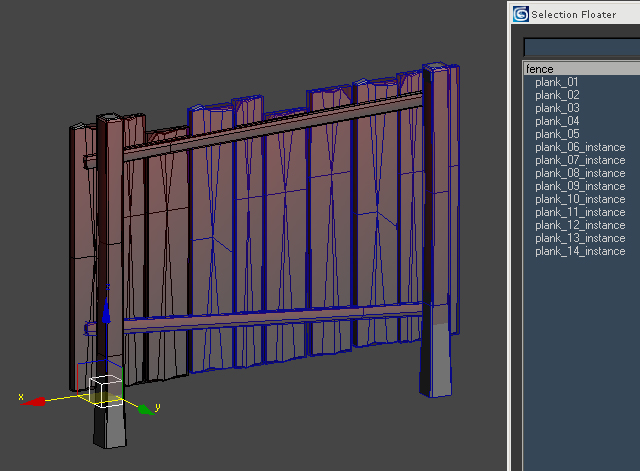

  • example picture of instanced elements fence (instances are blue)




General modelling workflow tips:

* use the instance function within max to ensure identical assets

  • rotate, scale objects to give variation
  • do not reset xform your instances!



Setup in Sandbox

no special setup needed in Sandbox, just place your object as brush or simple entity.

Debugging

* r_GeomInstancing 1/0 toggles the instancing on and off
