Procedural Breaking 3D Objects

Procedural Breaking 3D Objects

The underlying physics technology is versatile enough to break many things, not only tree trunks. It is just a matter of setting up the assets. For the examples below we will concentrate on tree trunks, though.

Sample File

cut_shape.max - tree example

sample_tree.max breakable cut out - example

General Setup in 3d applications


  • For the Trunk Material (!), turn on "physicalize" in the Material Editor. Set the Parameter for the physics to "default".


Important: Remove any proxy physics objects from parts you want to be breakable (i.e. trunk)

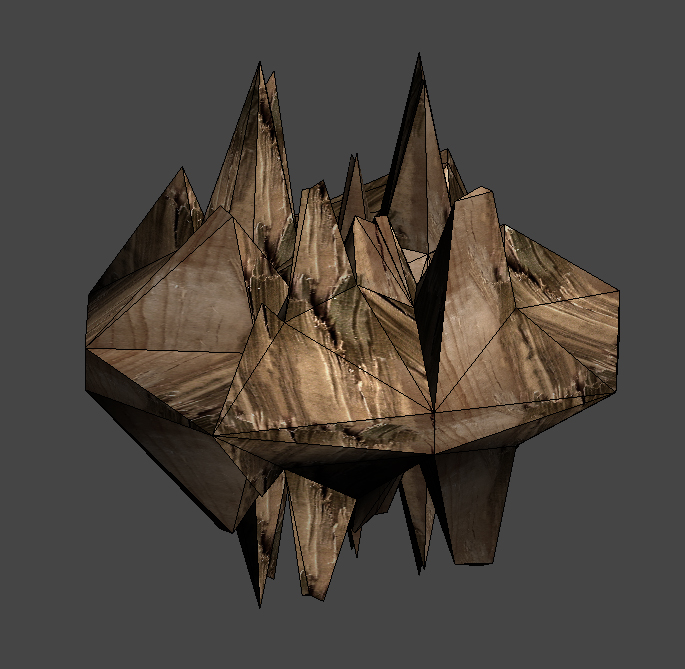

  • create a predefined mesh in an extra cgf file, which is used to "cap" the broken parts.

Setup in Sandbox Editor

  • In the Sandbox material editor, the trunk's material surface type needs to be set to "mat_wood_breakable".
  • The surfacetype defines the predefined mesh used to cap the tree trunk. The location and name of this mesh is stored in the surfacetype script.


  • Breakable trees need to be placed as vegetation objects.



  • apply enough force to the object to break it. in Crysis explosions from rocketlaunchers or grenades were sufficient to check the functioanlity.
